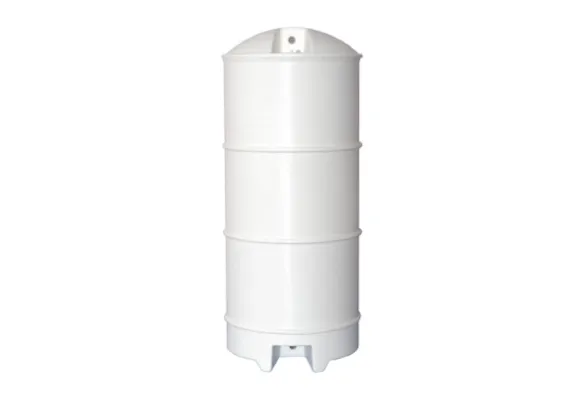

The middle sized Echomax Polyethylene models for sailing yachts, RIBs and motor cruisers. Fully tested by QinetiQ. Exceeds RORC/ORC requirement of 10m², but fails ISO 8729 by 2° per sector.
@ /-3°-20m² peak, 75% @2.5m², 100% @1.25m². Fits Blipper 210-7 mast brackets with same fixing centre of 545mm. Certified Ships Wheel mark for life boats and rescue craft.
Key Features
- Increased Radar Cross Section
- Increased Heel Response & High S Band Response
- Increased 360° Response Cycle
- Shipwheel mark for life boats and rescue craft

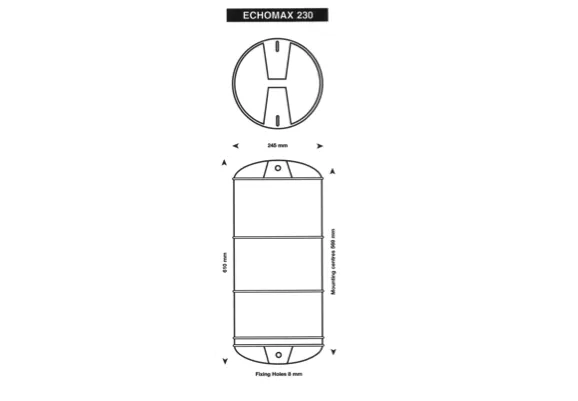

- Height: 45cm
- Diameter: 24.5cm
- Fixing centres: 41cm
- Fixing holes: 8mm Weight: 1.9kg
- Weight: 1.9kg
- Fits Firdell Blipper 210-7 Brackets
